Toshiba m.2 2280 enclosure

C

carmen617

Well-Known Member
Reaction score
765
Location
Boston, MA
I have a client's dead system with a Toshiba M2 2280 drive, specifically this model https://www.storagereview.com/review/toshiba-xg5-nvme-ssd-review

Model number on drive is kxg50znv512g

Client wants me to retrieve data on the drive. Earlier this year I purchased this m2 driver holder just for situations like this: https://www.newegg.com/en-labs-m2ngff25satabr/p/35G-008B-00009?Item=9SIACJF8369237

Drive doesn't fit into the slots - it's just a tiny bit off. This is not my area of expertise - I thought a 2280 m.2 was a 2280 m.2. So - I need to get data off drive, not an expert on this stuff, thinking I should actually just buy her an enclosure so I can give her the drive back out of the system to access data anywhere. Looking at this list on Amazon https://www.amazon.com/s?k=m2+2280+enclosure&i=electronics&ref=nb_sb_noss_1 - anybody know which one I should get?

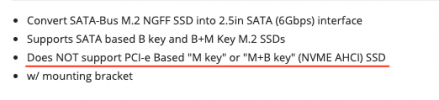

Thanks for the answer. Just for clarification, here' s a picture of the drive and the adapter I have. It looks like it should fit, but it's just a tiny bit out of whack. I've used the adapter before on a different m.2 drive. Do you think the one you linked will be different?


drive 1.jpgdrive 2.jpgdrive 2.jpgdrive 1.jpg

carmen617 said:
I have. It looks like it should fit, but it's just a tiny bit out of whack. I've used the adapter before on a different m.2 drive. Do you think the one you linked will be different?
Click to expand...
NVME drives are different and will not fit the other adapter. Other drives will not fit an NVME adapter in turn.
The one I linked will work.
Be warned, If you can not see the drive or the data... STOP and seek professional assistance. There is a good chance the data is gone so warn the client before you begin.

Yeah, I'd not have a problem with this route if the machine just keeled over all of a sudden. But I'd still make sure I had "the discussion" of how important their data is, do they have verified backups, etc.

Well, I sure hope you can get the correct NVMe adapter and read it. Based on what I just read about this model of SSD, the odds of it being recoverable by a pro if it has failed are pretty low...though, I wouldn't give up the chance to try.

- Self Encrypted
- Toshiba custom controller (TC58NCP090GSD) unsupported by PC3000 Portable III

lcoughey said:
Well, I sure hope you can get the correct NVMe adapter and read it. Based on what I just read about this model of SSD, the odds of it being recoverable by a pro if it has failed are pretty low...though, I wouldn't give up the chance to try.

- Self Encrypted
- Toshiba custom controller (TC58NCP090GSD) unsupported by PC3000 Portable III
Click to expand...

Thanks all - got the adapter, appears to work fine, recognize the drive, etc. Only problem is it appears to be Bitlocker encrypted. Will call client tomorrow, but who wants to bet she had no idea, and there's no way to find the key?

Pffft! How'd I miss this thread? I just posted in an old NVMe adapter thread looking for solutions.

I'm not understanding the function of the two SATA ports out the end?

Last edited:
carmen617 said:
Thanks all - got the adapter, appears to work fine, recognize the drive, etc. Only problem is it appears to be Bitlocker encrypted. Will call client tomorrow, but who wants to bet she had no idea, and there's no way to find the key?
Click to expand...
See if she has a M$ account. In some scenarios if they setup the computer with a M$ account it's automatically start BL with little to no fan fare.

Diggs said:
Pffft! How'd I miss this thread? I just posted in an old NVMe adapter thread looking for solutions.

I'm not understanding the function of the two SATA ports out the end?
Click to expand...
If your talking about the OP it looks to be a USB>SATA Connector.
If myself they are to go from card to SATA ports on Mobo.

Markverhyden said:
See if she has a M$ account. In some scenarios if they setup the computer with a M$ account it's automatically start BL with little to no fan fare.
Click to expand...
That's what I'm thinking too, and that's what I will call and ask her about tomorrow. She won't know it's a MS account, but she will know she had a password to get onto the system (hopefully will know that, not just the PIN) and MIGHT know the email address she used. I'm hopeful . . .

I've recently got one of these:

Simplecom SE515 Tool-Free NVMe / SATA Dual Protocol M.2 SSD to USB 3.2 Gen 2 Type C Enclosure

<p>SE515 is a M.2 SSD to USB-C enclosure supports both NVMe and SATA Protocol based M.2 SSD. No need to worry which protocol of your M.2 SSD, it will turn any M.2 SSD into a portable USB drive. It features solid aluminium body and USB 3.2 Gen 2 interface
www.simplecom.com.au www.simplecom.com.au
USB enclosure works with M.2 of both NVMe and SATA types. Distributed in Aus by Leader Systems.

I even got an extra one in stock and sold it within a week, to a customer with a dead laptop containing a 512GB M.2. With this product, I don't care which type of M.2 it is.
